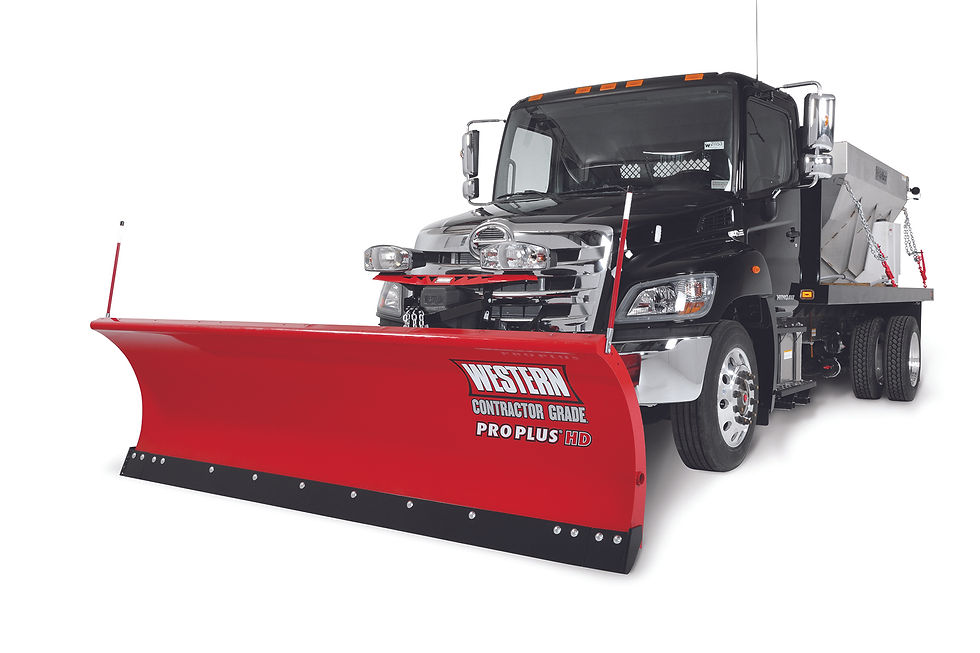

Western 10' Pro-Plus HD Snowplow Complete Assembly
- Blade Width: 10'
- Fits: Truck Class 5, 6 & 7 (low-end)
- Moldboard: Powder-Coated Steel
**Please Send a Message with the Year, Make, and Model of Truck to determine correct Truck Mount and Headlight Harness Adapter.**
Package includes:
76920 - Moldboard/Blade,
76900-4 - Big Box Blade Attachment A-Frame,
Vehicle Specific Mount,
72530 - NightHawk Halogen Plow Lights,
29070-1 - Isolation module,
Vehicle Specific Harness Kit and
35500 Hand-Held or 35600 Joystick Controller
Make the most of the Class 4 to 6 trucks in your fleet with a plow that stands up to the demands of heavy-duty commercial and light municipal snow plowing. The WESTERN® PRO PLUS® HD snow plow lets you make short work of large parking lots and local streets. Forget business cards—distinguish yourself with the clean pavement you leave behind you when using our heaviest-duty plow.
WESTERN® NIGHTHAWK™ Halogen Headlights included.
WESTERN® NIGHTHAWK™ LED headlights are available as an ($600) Upgrade. They are designed with patented EdgeView™ Technology. The dedicated LED bulb directs light through the outer edge of each plow light to provide a full 180 degrees of light visibility from plow edge to plow edge, giving you the best all-around view of the plow’s operating environment. See a job well done—clear as day—at any hour.
PLOW BLADE CONSTRUCTION
Built to withstand high demands, the 34″ tall, 10′ wide, 11-gauge, powder-coated steel moldboard is constructed to take on jobs like large parking lots and local streets. Equipped with a high-carbon steel cutting edge to reduce wear and extend the life of the blade, the PRO PLUS® HD snow plow ensures a clean scrape on every pass.
STRUCTURAL REINFORCEMENT
Eight vertical ribs provide structural reinforcement, ensuring proper alignment and reducing stress on the overall plow assembly.
RELIABLE HYDRAULICS
We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that’s not only fast and responsive, but that’s built to last season after season.
Fully enclosed components are protected from the elements.
TRIP PROTECTION
Six heavy-duty coil springs protect your plow and truck by allowing the whole blade to trip when striking obstacles.
Dual shock absorbers reduce jarring and soften the blade return when tripping occurs, to extend the life of your truck and plow.
UltraMount® 2 Snowplow Mounting System
The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms.
Chain Lift System
The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system. Main benefits include cleaner scraping performance, higher stacking capabilities, reliability, and easy recovery in the event of a breakdown.Chain Lift SystemThe mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system. Main benefits include cleaner scraping performance, higher stacking capabilities, reliability, and easy recovery in the event of a breakdown.
PLOW CONTROL OPTIONS
Choose between a FLEET FLEX CabCommand hand-held control 35500 with push buttons or a 35600 joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.
SECURITY GUARD™ ANTI-THEFT SYSTEM
The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft. Unlike physical locks that can easily be cut or removed, the system allows you to electronically lock the snowplow’s hydraulic functions, rendering your plow inoperable to unauthorized users.
Isolation Module
This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.
Imperial 10'
Moldboard Options Steel
Blade Type Straight Blade
Vehicle Compatibility Truck Class 5, 6 & 7 (low-end)
Approx. Weight* (Without Mount) 1,076 lbs
Plowing Width (Full Angle) 8'9"
Blade Width 10'
Blade Height 34"
Blade Thickness 11 ga
Shock Absorbers 2
Trip Springs 6
Ribs 8
Lift Cylinder 1¾" x 8"
Angling Rams 2" x 12½"
Cutting Edge ½" x 6" (Standard)
Mount Type UltraMount® 2
