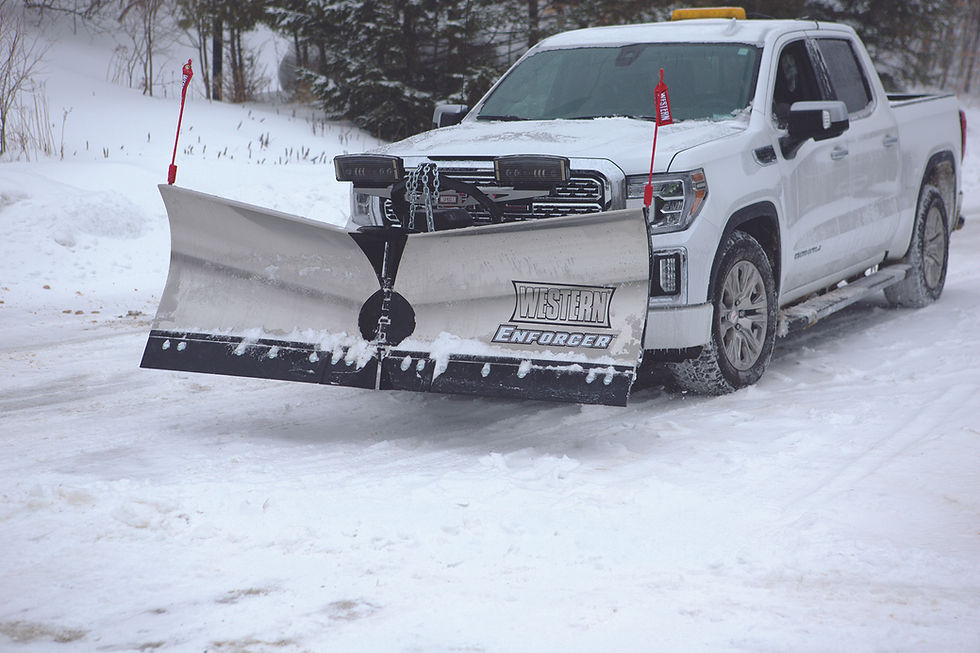

Western 7'6" Enforcer Stainless V-Plow Snowplow Complete Assembly
- Blade Width: 7'6"
- Fits: Half-Ton Trucks & Tractors
- Moldboard: Stainless Steel
**Please Send a Message with the Year, Make, and Model of Truck to determine correct Truck Mount and Headlight Adapter.**
Package includes:
97545 - Moldboard/Blade,
94045-3 - Big Box Blade Attachment A-Frame,
Vehicle Specific Mount,
72530 - NightHawk Halogen Plow Lights,
29070-1 - Isolation module,
Vehicle Specific Harness Kit and
35500 Hand-Held or 35600 Joystick Controller
The WESTERN® ENFORCER™ v-plow, with trip-edge design, is constructed of high-strength, low alloy steel that makes it stronger and lighter than conventional steel, and the ideal weight for half-ton trucks and 3 series tractors. The ENFORCER v-plow is engineered with all the features, efficiency and performance of full-size WESTERN v-plows, brought down into a lightweight design for today’s businesses and homeowners.
WESTERN® NIGHTHAWK™ LED headlights are available as an Upgrade ($600). They are designed with patented EdgeView™ Technology. The dedicated LED bulb directs light through the outer edge of each plow light to provide a full 180 degrees of light visibility from plow edge to plow edge, giving you the best all-around view of the plow’s operating environment. See a job well done—clear as day—at any hour.
Plow Blade Construction
The ENFORCER™ v-plow is constructed of high-strength, low alloy steel that makes it stronger and lighter than conventional steel, and the ideal weight for half-ton trucks. Available in premium, corrosion-resistant stainless steel or powder coated steel, the 7’6″ wide v-plow features wings that soar from a 27″ center height up to 33″ at the outer edge.
The blade comes standard with a 6″, high carbon steel cutting edge, providing increased wear resistance and a clean scrape.
An aggressive, 70-degree attack angle enhances scraping and back dragging, making it ideal for asphalt and paved surfaces, and for scraping up ice and hard-packed snow.
Structural Reinforcement
The ENFORCER™ v-plow features six vertical ribs, plus two additional horizontal ribs on the stainless steel model, which reinforce the blade for structural integrity and exceptional torsional strength.
A ¾”-diameter, heat-treated steel center pin resides within a three-connection-point hinge for added strength and rigidity.
RELIABLE HYDRAULICS
We manufacture our own hydraulic components to ensure the highest standards of quality and reliability, so that you get a hydraulics system that’s not only fast and responsive, but that’s built to last season after season.
Fully enclosed components are protected from the elements.
Adjustable Width Configuration
Configures to varying vehicle heights and widths in order to maintain optimum performance.
Double-Acting Cylinders
The double-acting cylinders allow operators to lock the wings together in order to control the v-plow in straight blade mode without having to adjust each wing independently. The wings also lock firmly in place for efficient back dragging capabilities.
Hydraulic Cover
The fully enclosed hydraulic cover protects the hydraulic unit from the elements and does not require any tools to remove.
Steel Center Gap Cover
For the cleanest pass in any blade configuration, the ENFORCER™ v-plow has a snow control gap cover over the center hinge to help deflect and prevent snow from being lost over the top of the blade.
TRIP PROTECTION
Each blade features independent trip-edge design with a compression-style spring for protection when encountering bumps and obstacles that doesn’t wear easily. Whether in V, scoop, or straight blade configuration, the trip edge helps protect the plow, the truck, and the operator. Since only the edge trips, snow remains in front of the blade, so you can keep going without spilling the entire load of snow.
Tractor Compatible Mount Kit
Designed for easy installation onto a wide range of tractor models, these mount kits make it possible for the ENFORCER v-plows to fit on a compact tractor. They are flared both vertically and horizontally to ensure proper alignment and make the drive-in connection easier. The push beam, which makes up the front portion of the mount, can be quickly detached to allow for a loader attachment.
UltraMount® 2 Snowplow Mounting System
The UltraMount® 2 system is designed for fast and easy installation and removal using a simple mechanical system. It features a robust one-piece design and is 100% compatible with UltraMount® system mounts and electrical platforms.
Chain Lift System
The mechanical chain lift system offers a variety of performance and reliability advantages over a hydraulic system. Main benefits include cleaner scraping performance, higher stacking capabilities, reliability, and easy recovery in the event of a breakdown.
PLOW CONTROL OPTIONS
Choose between a CabCommand hand-held control with push buttons or a joystick control, based on operator preference. For efficient, precise and intuitive blade control while plowing, both controls feature power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.
SECURITY GUARD™ ANTI-THEFT SYSTEM
The exclusive WESTERN® SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft. Unlike physical locks that can easily be cut or removed, the system allows you to electronically lock the snowplow’s hydraulic functions, rendering your plow inoperable to unauthorized users.
Isolation Module
This advanced snow plow light and electrical system features improved electrical pins in the harness for trouble-free connections. An underhood module improves system life and complies with OEM requirements. No toggle switch needed to change from vehicle to plow lights.
Imperial 7'6"
Moldboard Options Stainless Steel
Blade Type V-Plow
Vehicle Compatibility Half-Ton Trucks & Series 3 Tractors
Approx. Weight* (Without Mount) Stainless Steel: 556 lbs
Plowing Width (Full Angle) Full Angle: 6'7"
Scoop: 6'5"
Full V: 6'9"
Blade Width 7'6"
Blade Height At Center: 27"
At End: 33"
Blade Thickness Stainless Steel: 14 ga
Trip Springs 2
Ribs 6
Lift Cylinder 1¼" x 8.625"
Angling Rams 1½" x 12"
Cutting Edge 0.375" x 6" (Standard)
Mount Type UltraMount® 2
